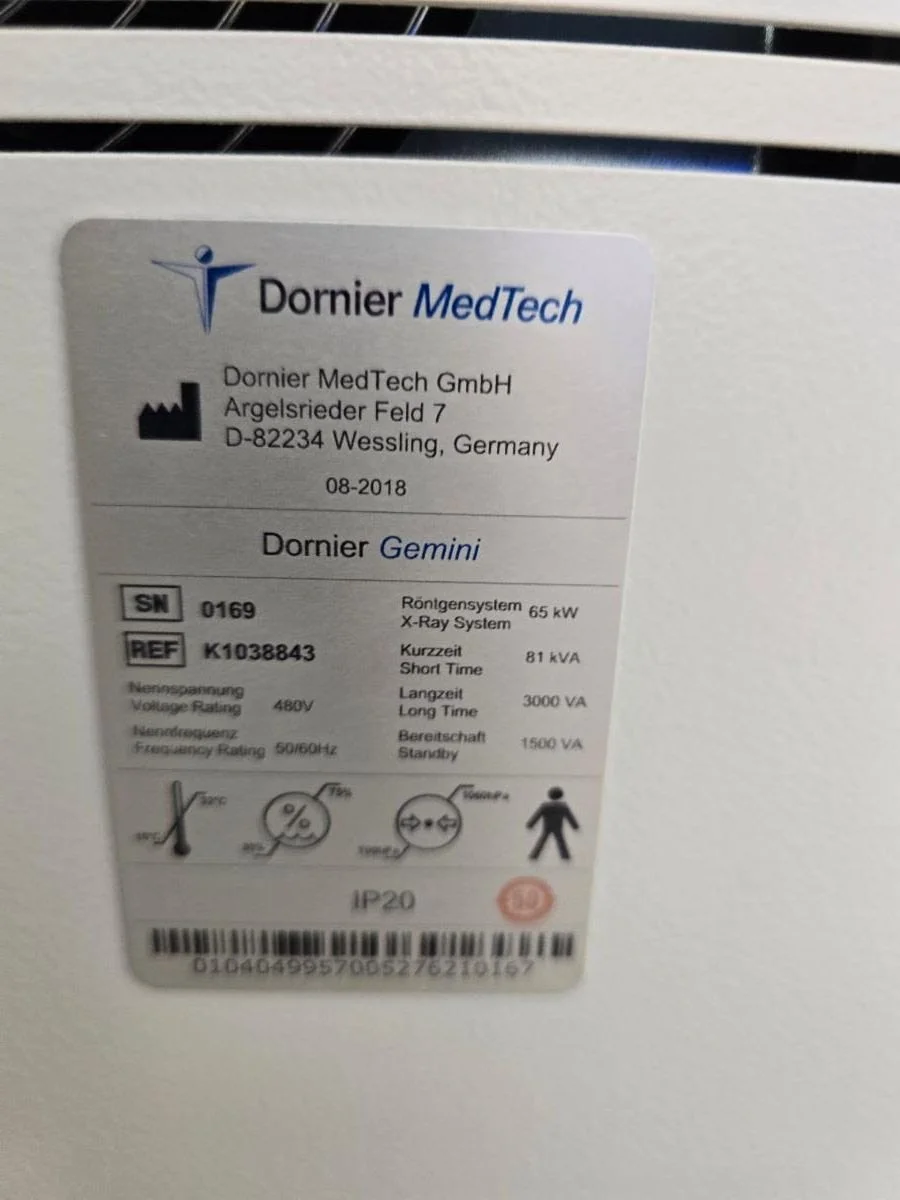

SN#0169
Exposure Count 1118
Fluoro time 76:08:37

The Dornier Gemini is a multifunctional urological workstation designed for Extracorporeal Shock Wave Lithotripsy (ESWL), endourologic procedures (PCNL, URS), and general diagnostic fluoroscopy.

Shockwave Generation & Therapy Head

• Shockwave Source: Electromagnetic Shockwave Emitter

• Penetration Depth: Standard up to 170 mm penetration depth for treating obese or deep-set stone patients.

• Therapy Head C-Arm: Revolves around the patient so treatment can occur in a comfortable supine position without needing patient repositioning

Coupling & Monitoring: Features an inflatable water bellows with optional integrated optical/video coupling control to monitor air bubbles at the patient contact point.

Image Intensifier:16-inch (approx. 40 cm) large-field image intensifier capable of full abdominal imaging (visualizing the entire urinary tract in a single fluoroscopic view)

X-Ray C-Arm Movement: Orbital movement with transverse, sagittal, and oblique (CC) projections to bypass bone shadows or intestinal gas overlay.

Continuous Tracking: Radiolucent therapy head design permits continuous real-time stone monitoring during C-arm rotation.

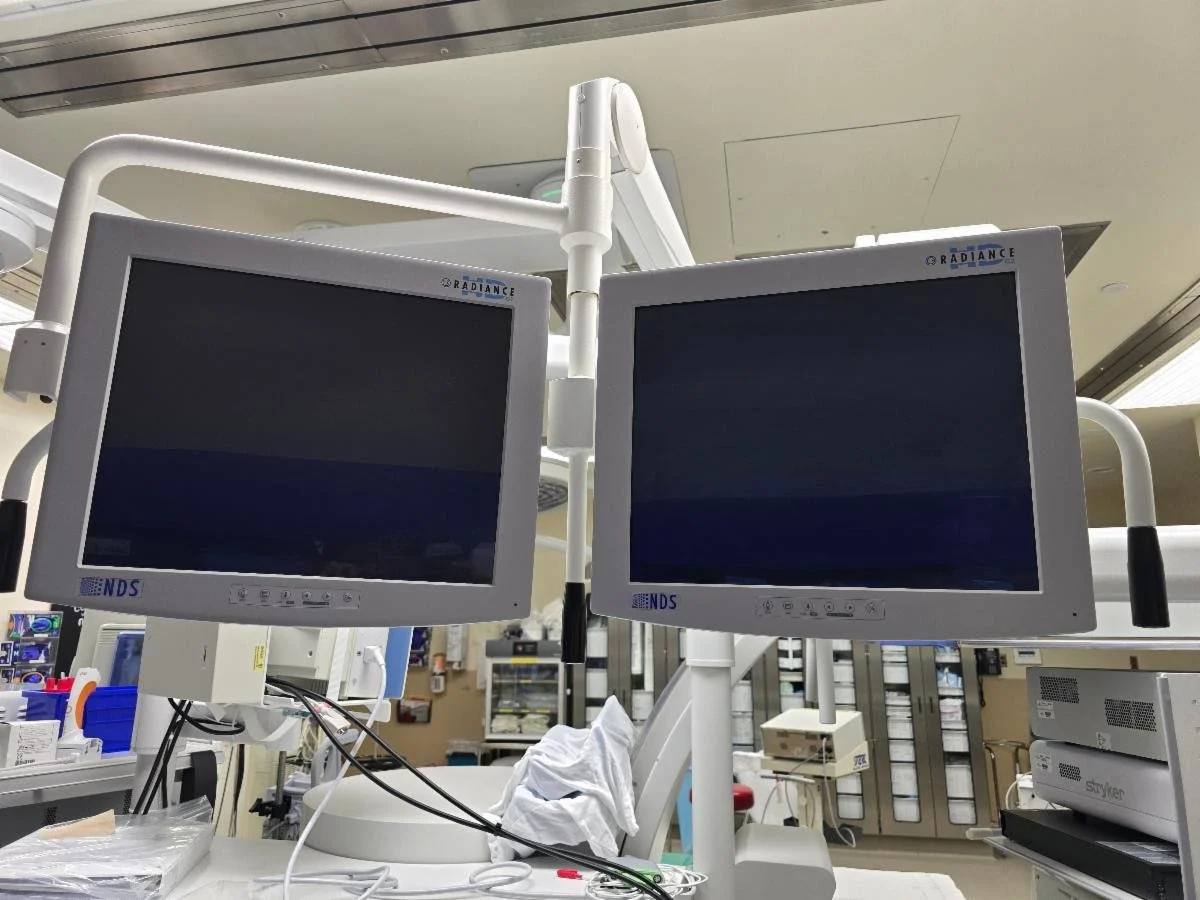

Display: Dual high-resolution flat-panel monitors mounted on flexible swivel arms.

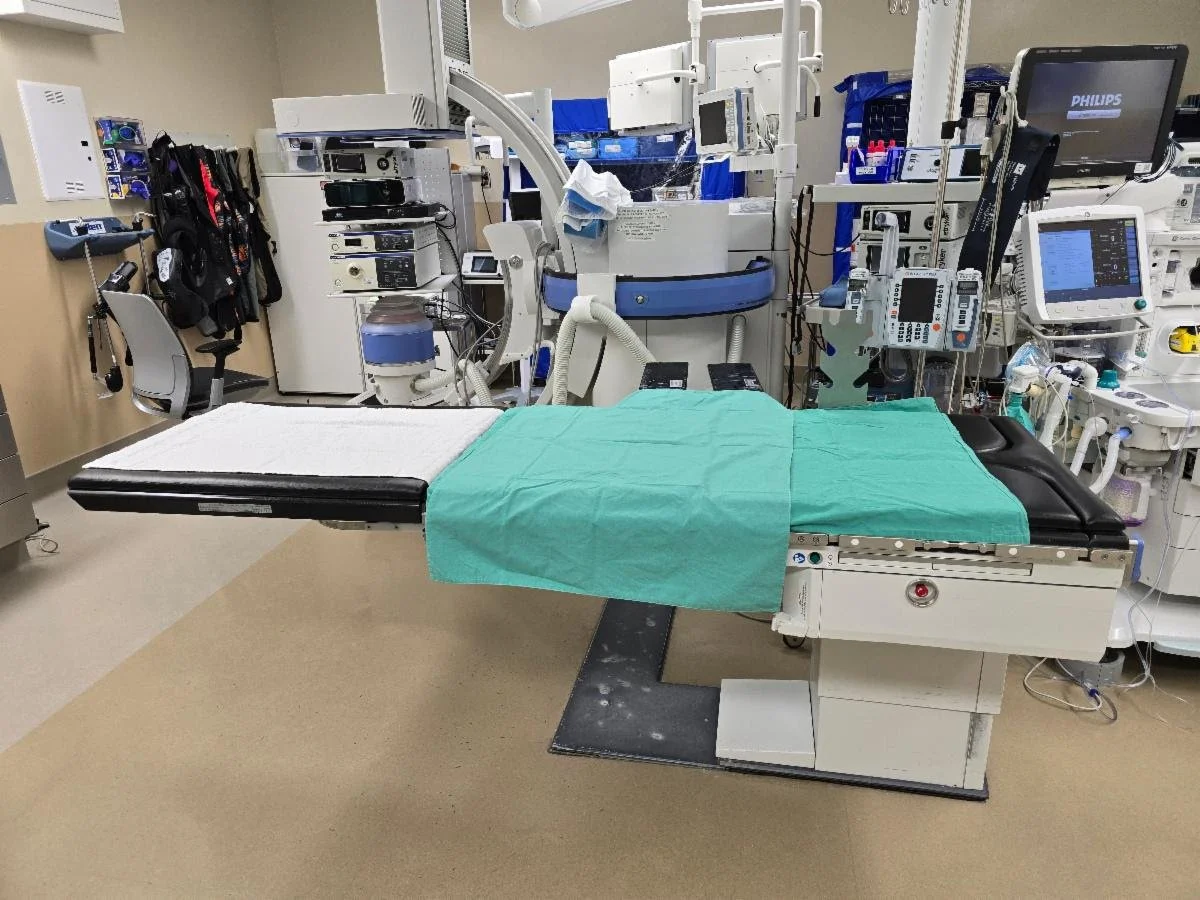

Patient Table & System Ergonomics

• Table Design: Motorized height adjustment and dual perineal cut-outs to maximize undertable access.

• 180° Rotating Top: Carbon fiber tabletop rotates 180° to provide an artifact-free imaging path for endoscopic procedures.

• Parking Positions: Dedicated X-ray and ESWL parking positions for unobstructed, 360° patient access during patient transfer or ancillary bedside procedures (e.g., ultrasound-guided renal biopsy).

• Controls: Footswitch and hand controls for table positioning and fluoroscopy.

Data & PACS Connectivity

• Software: Integrated point-and-click software with automatic parameter recording and configurable treatment reports.

• DICOM Services: Comprehensive DICOM connectivity including Worklist, MPPS, Query/Retrieve, Storage, and Print to integrate into hospital PACS networks.

**Buyer will be responsible for all cost associated with shipping.

AS IS, WHERE IS

Located the mid-west

Email me at Rich@i-mic.org for more pictures
