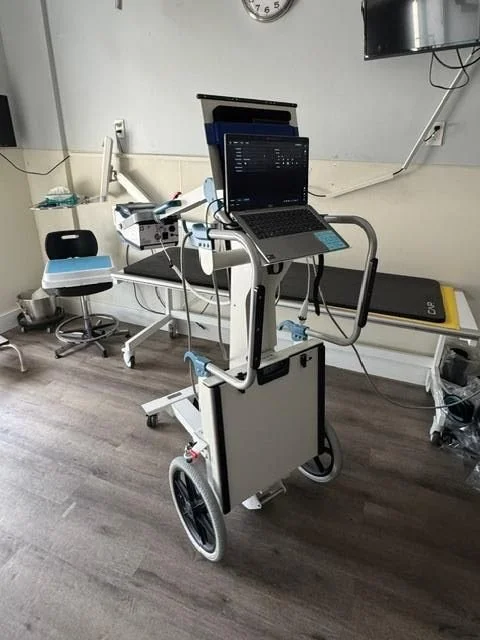

This 2025 SR-8230 Portable X-Ray Unit is a nearly new system, 5 KV head installed 11/2025.

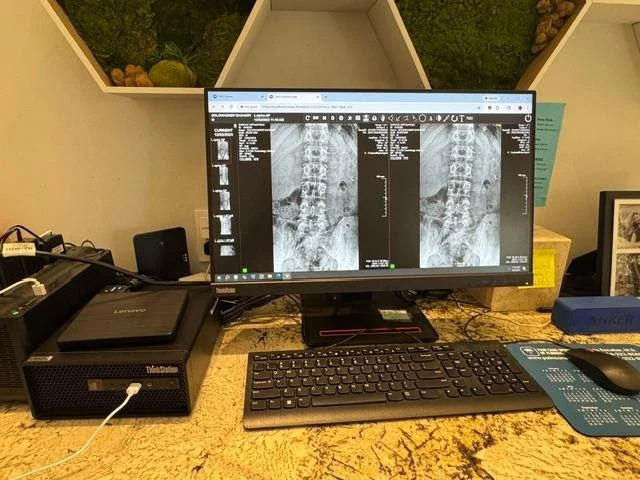

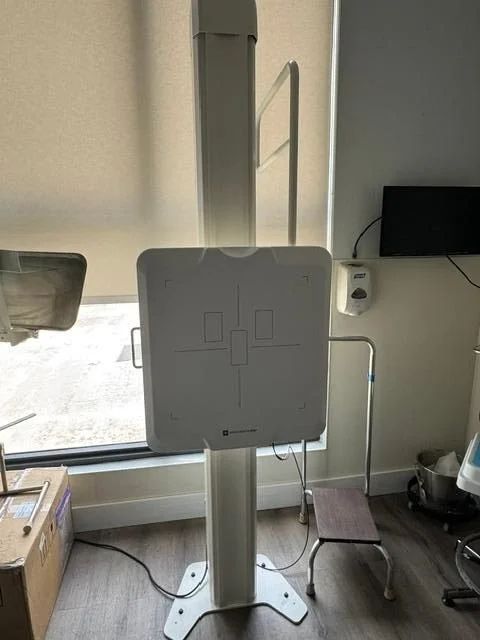

There's also an upright Bucky, table, and connected Konica/Minolta mini-PACS has 3 year prepaid subscription and support.

SN# 43353250203R

5 kW High-Frequency. Battery Powered.

The SR-8230 Portable X-ray Unit is a portable X-ray device, intended for use by a qualified/trained physician or technician for the purpose of acquiring X-ray images of the desired parts of patient’s anatomy (including head, cervical spine, chest, abdomen, lumbar spine, pelvis and extremities). The device may be used for handheld diagnostic imaging of body extremities.

• Memory Settings (technique): 16 memories

• Generator: High Frequency

• kW: 5.0kW

• kVp: 40-125

• mA : 10mA-100mA

• Output Rating: Max. 5.0kW(40mA@125kV)

• mAs Range – 0.63-100 mAs

• Exposure Time – 0.002 to 10.0 seconds in 96 increments

• X-ray Tube Type: Stationary Anode

• Focal Spot Size (Small/Large): 0.6/1.8mm

• Anode Heat Storage Capacity: 42,000HU

• Collimator: Continuously Adjustable

• Lamp Source: LED

• Weight: 15kgs(33.06lb) / Including Collimator

• Size 460mm×245mm×188mm

• Energy Source: Lithium-ion Rechargeable Battery (44.4V DC), 300 exposures per charge

• Use Interface: Soft touch push buttons

**Buyer will be responsible for all cost associated with shipping.

AS IS, WHERE IS

On the East Coast

Email me at Rich@i-mic.org
