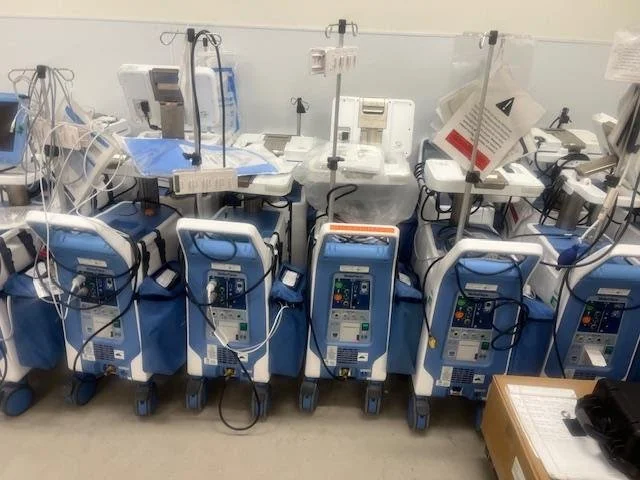

We have 24 qty units in like-new condition, and some may have never been put into service. They were purchased early last year, but the hospital has since pivoted to a different solution.

Teleflex Arrow AC3 Specifications

Dimensions

• Control Module with Monitor

• Height: 10.25″ (26 cm)

• Width: 14.5″ (36.8 cm)

• Depth: 2″ (5 cm)

• Pneumatic Drive Unit

• Height: 33.3″ (84.6 cm)

• Width: 13″ (33 cm)

• Depth: 24.5″ (62.2 cm)

Weight

• Control Module: 6 lbs (2.7 kg)

• Pneumatic Unit AC3 Optimus IABP: 98 lbs (44.5 kg)

• Total Weight for AC3 Optimus IABP: 104 lbs (47.2 kg)

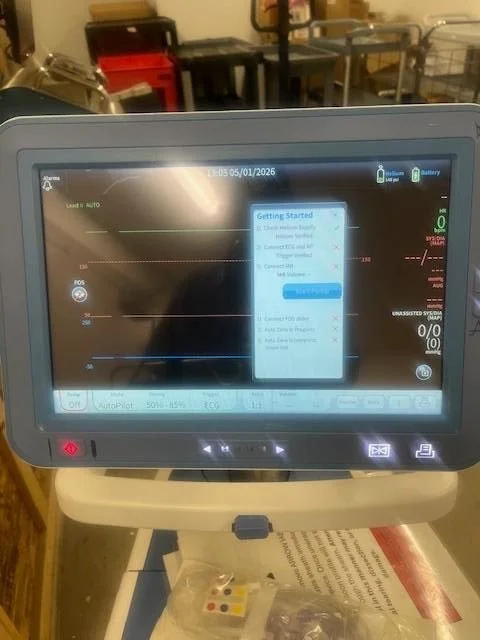

Display

• Type: High-resolution color touchscreen display/li>

• Size: 13.3″ (33.78 cm) diagonal/li>

• Sweet Speed: 25 msec (±1%)/li>

• Channels: 3-channel multicolor waveforms

System Mode

• AutoPilot Mode on the AC3 Optimus: Automatically selects ECG/AP signal, sources, trigger mode, and timing method as well as timing settings; Automatically changes settings to optimize assistance; Proprietary software sets timing to correspond to individual patient needs

• Operator: Allows user control of most pump functions

Pneumatics

• Drive system: Stepper motor-driven bellows

• Drive gas: USP-grade helium

• Helium tank: Disposable canister (500 psi) or refillable (2000 psi) cylinder–U.S. approval; (2900 psi) cylinder–European approval

• Pumping volume: 0.5 cc to 50 cc, adjustable in 0.5 cc increments

• Counterpulsation rate: 40 to 200 pulsations/minute

• Assist ratio options

Condensation Removal

• The thermoelectric system removes moisture continuously from the AC3 Optimus pneumatic system without interrupting counterpulsatio

**Buyer will be responsible for all cost associated with shipping.

AS IS, WHERE IS

$30,000 each

On the West Coast

Email me at Rich@i-mic.org
